Tapping Tools and Machines

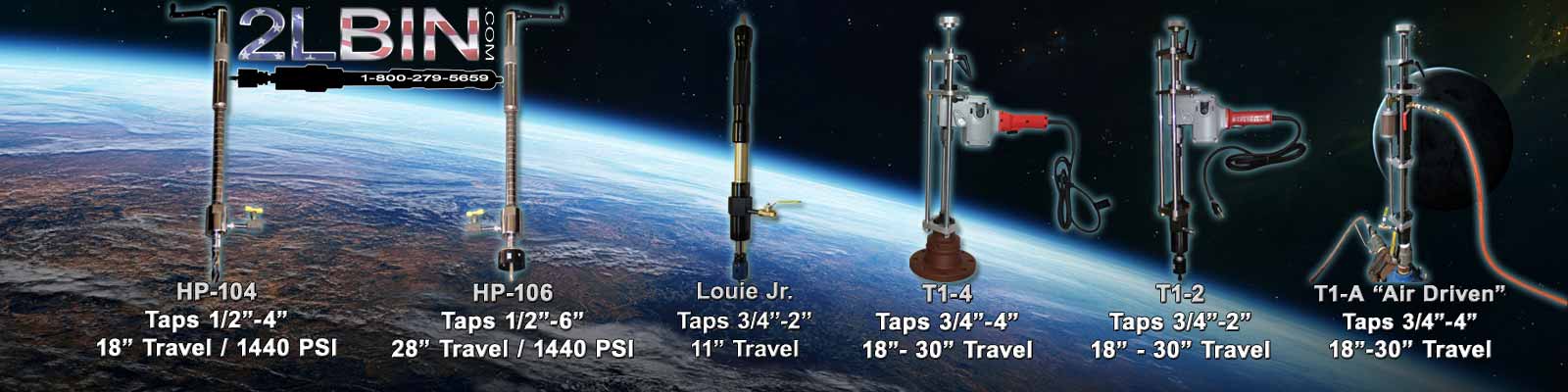

LJ1-25 Tapping Tool
3/4" - 2" hot taps on all pipe types
Operating max. pressure:
300 psi. @ 100° F
Operating temperature:
250° F @ 250 psi.
T1-2 Tapping Tool
3/4" - 2" pressure taps all pipe quickly & safely
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 250 psi.
T1-4 Tapping Tool
3/4" - 4" pressure taps all pipe quickly & safely
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 250 psi.
T1-A Tapping Tool
3/4" - 4" Air drive tapping tool
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 250 psi.
HP-104 Tapping Tool
1/2" - 4" High pressure taps
Operating max. pressure:
1440 psi. @ 100° F
Operating temperature:
700° F @ 700 psi. intermittent.
Max. Continuous rating:
350° F @ 1000 psi.
HP-106 Tapping Tool
1/2" - 6" High pressure taps
Operating max. pressure:
1440 psi. @ 100° F
Operating temperature:
700° F @ 700 psi. intermittent.
Max. Continuous rating:
350° F @ 1000 psi.

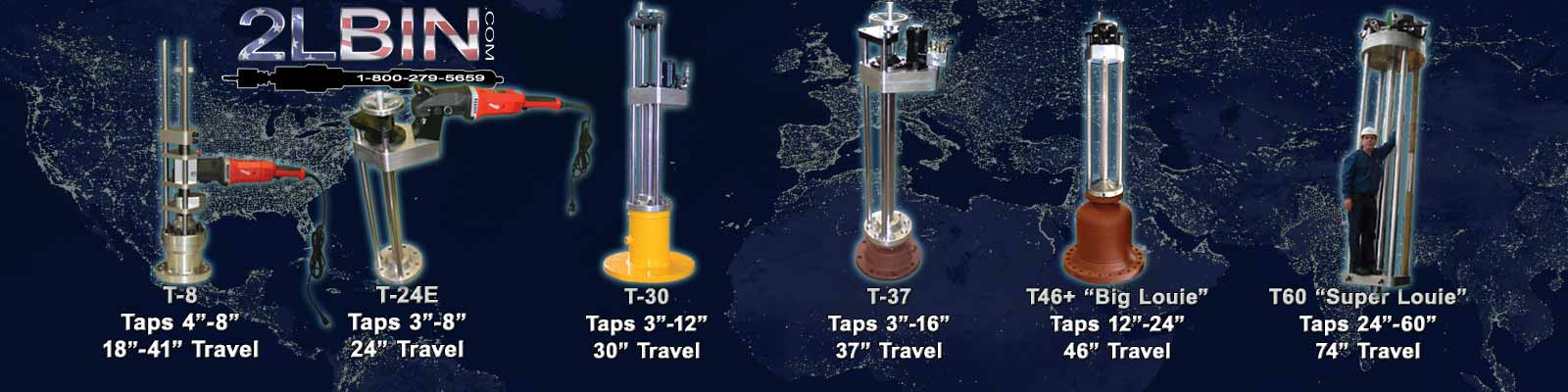

T1-8 Tapping Tool
4" - 8" lightweight tapping tool
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 250 psi.
Total weight of machine- 55 lbs.
T-24E Tapping Tool
3" - 8" pressure electric drive taps-ins
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 250 psi.
Total weight of machine-110 lbs.
T-30 Tapping Tool
3" - 12" pressure tap-ins
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 300 psi.
T-37 Tapping Tool
3" - 16" pressure tap-ins for Municipal pipe
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 300 psi.
T-46+ Tapping Tool
This machine has 46” of travel & taps 12” - 24"
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 300 psi.
T-112 Tapping Tool
This tapping machine performs taps 24” - 60”
Operating max. pressure:
300psi @ 100°F (std.packing)
Operating temperature:
250°F @ 300 psi.
